WWP-S400

Vertical Robot Arm Servo Carton Erector

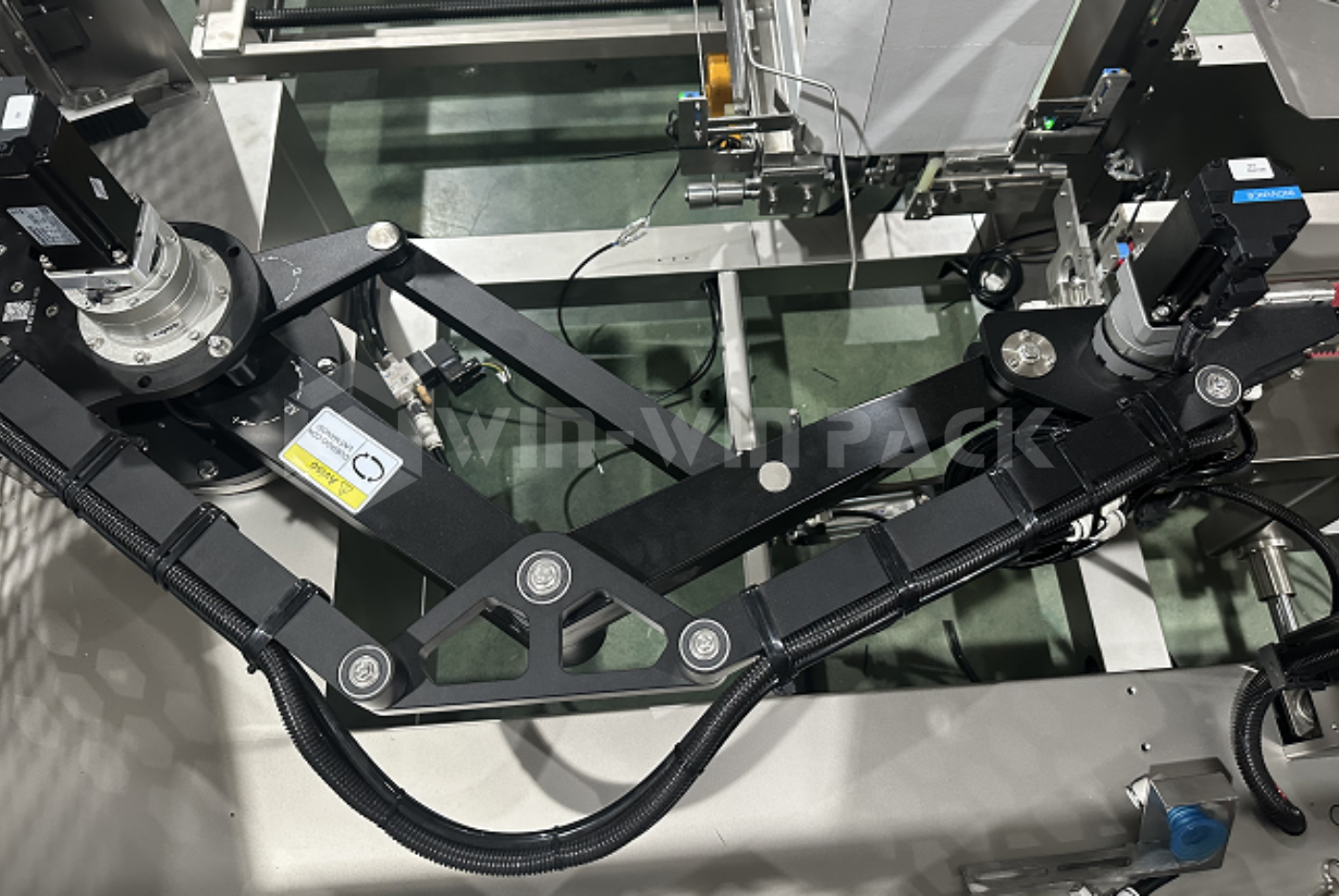

This is a compact, high-automation carton forming machine with easy operation and low maintenance. Side belts driven by servo motors ensure precise squaring, and pneumatic cylinders fold the cartons. An open conveyor and inclined magazine allow easy operation and continuous feeding. It is stable, low-noise, gentle on cartons, and can integrate with other equipment.

| Parameter | WWP-S400 | WWP-S500 | WWP-S650 |
| --- | --- | --- | --- |
| Machine Speed | 5–30 cartons/min | 5–30 cartons/min | 5–25 cartons/min |
| Carton Storage Capacity | 100 pcs (1000 mm) | 100 pcs (1000 mm) | 100 pcs (1000 mm) |
| Carton Size | L145–400 × W85–350 × H105–350 mm Requirement: 240 ≤ H + W/2 < 560; 210 ≤ L + W ≤ 705 Actual: L280–500 × W150–400 × H150–400 mm | L145–400 × W85–350 × H105–350 mm Requirement: 240 ≤ H + W/2 < 560; 335 ≤ L + W ≤ 870 Actual: L280–650 × W180–500 × H150–500 mm | L145–400 × W85–350 × H105–350 mm Requirement: 240 ≤ H + W/2 < 710; 435 ≤ L + W ≤ 1120 |
| Power Supply | 220 V, 50 Hz, 1 Phase | 220 V, 50 Hz, 1 Phase | 220 V, 50 Hz, 1 Phase |
| Air Pressure Supply | 0.6–0.7 MPa | 0.6–0.7 MPa | 0.6–0.7 MPa |
| Power | 2500 W | 2500 W | 2500 W |
| Applicable Tape Width | 36–50 mm | 36–60 mm | 36–60 mm |
| Tape Diameter | Below 250 mm | Below 250 mm | Below 250 mm |
| Machine Dimensions (L×W×H) | 2400 × 2000 × 1400 mm | 2600 × 2000 × 1400 mm | 2920 × 2100 × 1550 mm |
| Machine Weight | 450 kg | 620 kg | 900 kg |
| Note | Machine speed depends on carton quality and carton size. | Machine speed depends on carton quality and carton size. | Machine speed depends on carton quality and carton size. |
