WWP-07BSS

Stainless Steel Drum Bag Inserter

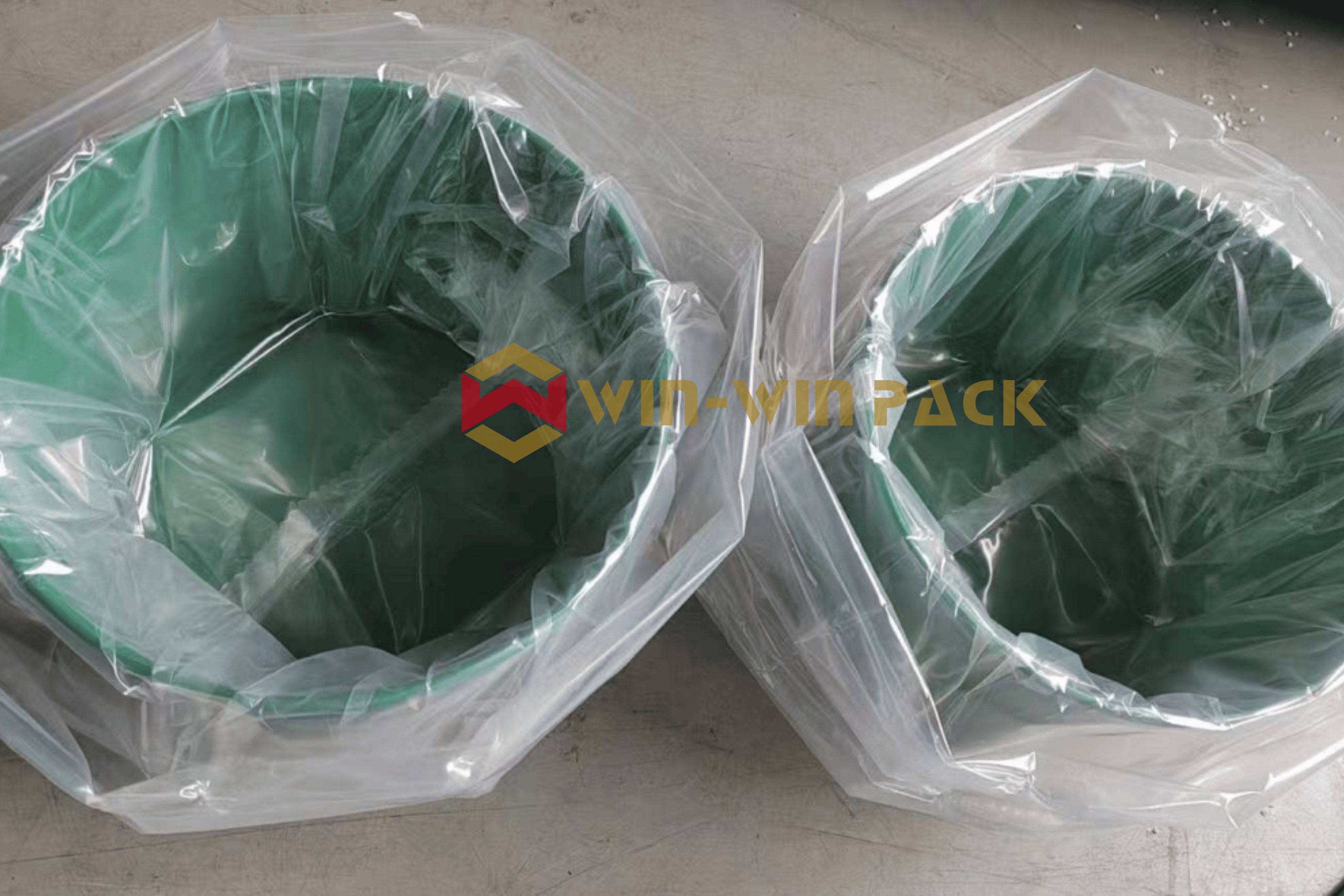

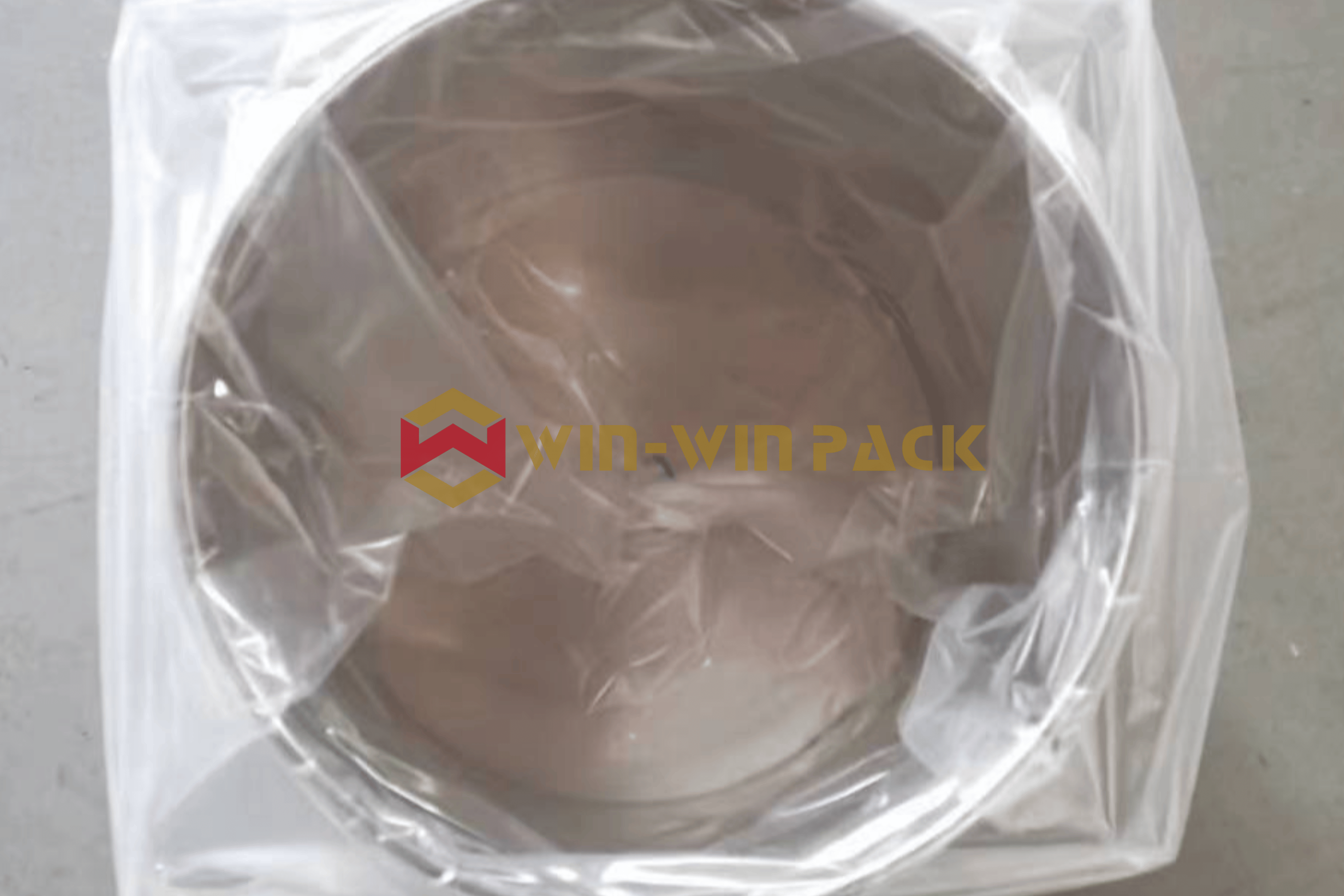

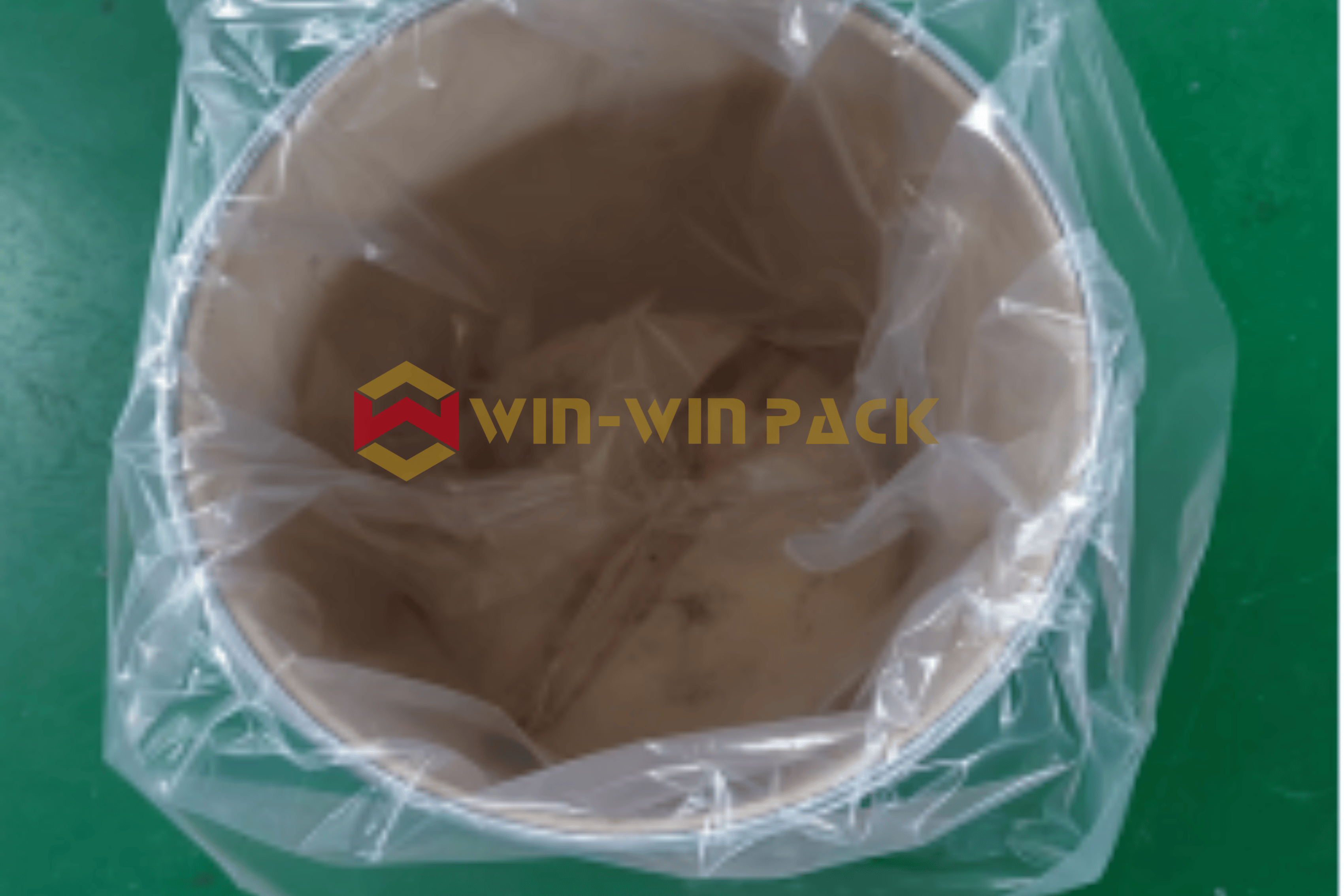

The stainless steel drum bag inserter automatically inserts and expands plastic liners inside drums at speeds of 5–7 drums per minute. Featuring one-touch operation and stable performance, it reduces labor costs and improves packaging efficiency for food, chemical, pharmaceutical, and industrial applications.

## Technical Specifications

| Item | Specification |
|---|---|
| Model | WWP-07BSS |
| Power Supply | 380V, 50Hz, 4.5 kW |
| Applicable Drum Size | Diameter: φ250–350 mm<br>Height: 200–400 mm |
| Processing Speed | 5–7 drums/min |
| Table Height | 650 mm |
| Film Width | Customizable M-type folded tube film |
| Air Supply | 6–7 kg/cm² |
| Machine Dimensions | 2250 × 1670 × 2050 mm |

## Features

The stainless steel drum bag inserter is designed to automatically insert plastic liners into drums, improving production efficiency and reducing labor costs. With a processing speed of 5–7 drums/min, it features high stability, an independent control panel, and one-touch operation.

The machine adopts a forward bag insertion method. The plastic liner is first fed into the drum, then mechanical grippers open the liner and fold the edges over the drum rim. The drum is then conveyed to the next station, where air is used to fully expand the liner, completing the automatic bag insertion process.

By automating the liner insertion process, the machine reduces labor requirements, material consumption, and production space. It is easy to operate, simple to adjust, and can be integrated into automatic production lines to improve overall efficiency.

This equipment is widely used for packaging applications in industries such as food ingredients, chemical raw materials, oils, pharmaceuticals, and other bulk materials.
